Precision engraving machine structural characteristics ax:
* The overall steel fuselage, * load gantry movement pattern can be overweight, oversized workpieces.
* USB interface with a DSP multi-axis motion controller.
* Includes 512M flash memory, removable disk working methods can be directly read U disk.
Open software interface, can be accessed by a variety of 3D engraving software.
* Hand-held Chinese LCD display controller. Water-cooled brushless spindle frequency control.
* Automatic knives. The maximum operating speed of up to 8 m / min.
|
Model |

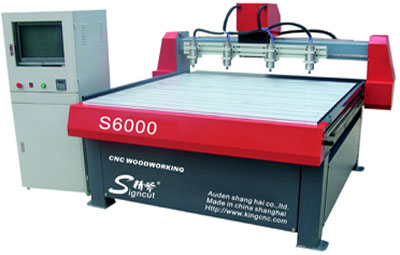

S5000 |
S6000 |
s8000 |
s9000 |
|
600mm*900mm |
1200mm*1200mm |
1200mm*1800mm |
1200mm*2400mm |
|
Working size Z-axis(mm) |
120mm |
140mm |
140mm |
110mm |
|
|
|
|
|
|
Max rapid |
12m/min |
12m/min |
12m/min |
12m/min |
|
Max cutting feed |
10m/min |
|
|
|
|
Resolution |
0.005mm |
0.005mm |
0.005mm |
0.005mm |
|
Position |
0.05mm |
0.05mm |
0.05mm |
0.05mm |
|
Maximum feeding height
|
90mm |
90mm |
90mm |
90mm |
|
Processor |
DSP/100MHz/PCI |
|
Interface |
USB1.1/2.0 |
|
Memory |
512M(read U disk Direct)/PCI |
|
Carving Instruction |
3D Carving Instruction Set（HP-GL、G-code） |
|
Software Runtime Environment |
Windows98/2000/XP |
|
Power |
AC200V/AC100V |
|
|
|
|
|
|
|
Spindle
|
1500w |
|
|
|
|
Spindle speed |
0～24000rpm |
|
|
|
|
Weight
|
270kg |
750kg |
850kg |
1000kg |
|
Operation environment
|
Temperature: +5 ℃ ~ +35 ℃, relative humidity 30% ~ 75% |
